ROTARY LOBE PUMPS
Rotary lobe pumps are widely used in food, dairy, beverage, cosmetic, pharmaceutical, and personal care industries for their gentle, hygienic transfer of viscous, shear-sensitive, and particulate-laden fluids.
Constructed from 316L stainless steel with low-shear, non-pulsing operation, they maintain product integrity even in demanding processes. Designed for full clean-in-place (CIP) cleaning and fast maintenance access, rotary lobe pumps are a trusted solution for hygienic product transfer.
Alliance Fluid Handling stocks both complete pumps and spare parts in the UK for rapid delivery and support.
ROTARY LOBE PUMP MAKES & MODELS

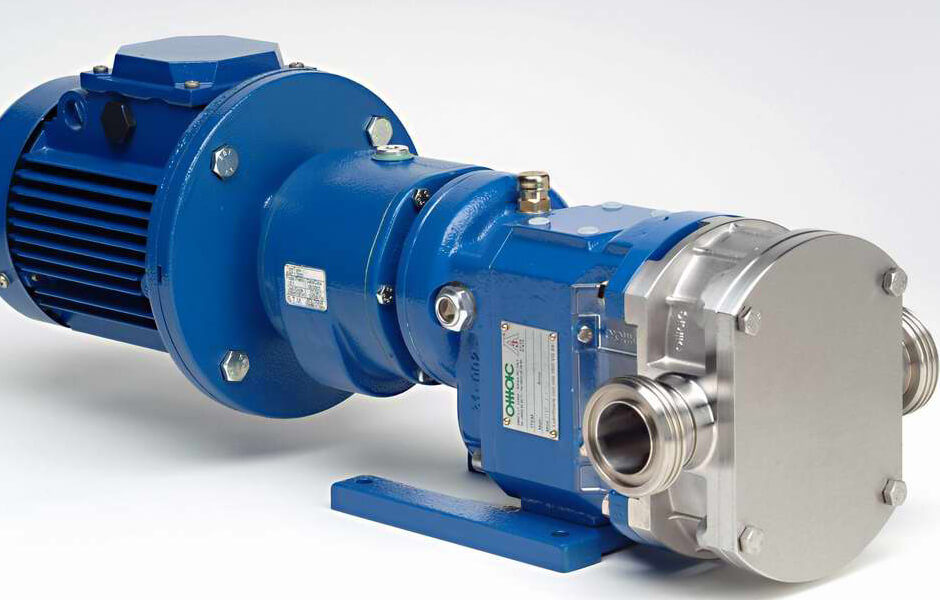

OMAC PUMPS
SERIES B
Features:
316L SS pump head, cast iron gearbox, bi-lobe rotors, modular construction, balanced mechanical seals, CIP/SIP capable.
Benefits
Gentle, non-contact pumping for viscous/abrasive fluids; modular for easy maintenance; self-draining, hygienic design.
Applications:
Food, dairy, beverage, personal care, chemical; suitable for viscous or particle-laden fluids.
Certifications:
EHEDG, optional 3-A, ATEX available
Downloads:
Flow Rates: Up to 200 m³/h
Pressure: Up to 20 bar
Temperature: Up to 130 °C (CIP/SIP capable)
Material Compatibility: 316L stainless steel wetted parts; FDA-compliant EPDM/FKM seals; optional Duplex shafts and various seal types.
SERIES BA/BB
Features:
Enhanced hygienic design with front-loaded seals, self-draining casing, and crevice-free internal surfaces; CIP/SIP ready.
Benefits
Improved cleanability; lower maintenance; 3-A sanitary compliant; optimized for dairy, biotech, and pharma uses.
Applications:
Aseptic dairy, food and pharma applications requiring 3-A compliance and frequent CIP.
Certifications:
3-A Certified (BA), EHEDG, ATEX option
Downloads:
Flow Rates: Up to 200 m³/h
Pressure: Up to 20 bar
Temperature: Up to 130 °C
Material Compatibility: 316L SS wetted parts; FDA & 3-A compliant elastomers; polished internals (Ra ≤ 0.8 µm).
SERIES C/CF
Features:
Ultra-hygienic lobe pump with electropolished internals, front-loaded seals, 4-lobe rotors, and EHEDG Class I certified design.
Benefits
Designed for ultra-clean, low-shear fluid transfer in pharma, dairy, biotech; external rotor adjustment; minimal product hold-up.
Applications:
Pharmaceutical, sterile dairy, infant nutrition, biotech, high-purity food processing.
Certifications:
EHEDG Type EL Class I, 3-A Certified, ATEX
Downloads:
Flow Rates: Up to 144 m³/h
Pressure: Up to 17 bar
Temperature: Up to 130 °C (SIP to 150 °C)
Material Compatibility: 316L stainless steel; FDA & USP Class VI elastomers; optional Monel, Hastelloy for aggressive fluids.
FRISTAM PUMPS
FL2
Features:
Bi-wing (dual-lobe) rotors, front-loading seals, stainless steel construction, external rotor gap adjustment, universal mounting.
Benefits
Gentle low-shear handling; excellent for viscous and shear-sensitive products; easy seal replacement and minimal maintenance.
Applications:
Food, dairy, sauces, cosmetics, pharma, yeast, creams, lotions — ideal for low-shear applications with frequent CIP.
Certifications:
3-A Certified, FDA, USP VI
Downloads:
Flow Rates: Up to 86 m³/h
Pressure: Up to 11.7 bar
Temperature: Up to 121 °C (SIP capable)
Material Compatibility: 316L stainless steel; FDA/USP elastomers; SiC/carbon seals; optional steam barrier and jacketed casing.
FL3
Features:
Tri-lobe helical rotors, nearly pulse-free flow, front-loading mechanical seals, reversible flow, CIP-cleanable in place.
Benefits
Low pulsation and shear; gentle transfer of soft solids and viscous products; compact and efficient; easy maintenance.
Applications:
Dairy (curd), sauces, syrups, wine, lotion, creams; ideal where gentle and consistent flow is required.
Certifications:
3-A Certified, FDA
Downloads:
Flow Rates: Up to 50 m³/h
Pressure: Up to 8 bar
Temperature: Up to 150 °C (for SIP)
Material Compatibility: 316L stainless steel; FDA-compliant elastomers and finishes; EPDM standard; electropolished options available.
ALFA LAVAL PUMPS
OPTILOBE
Features:
Tri-lobe rotors, front-loading seals, stainless steel housing, gentle product handling, compact design for hygienic duties.
Benefits
Cost-effective, low-shear transfer for food, beverage, and personal care; easy maintenance and full CIP compatibility.
Applications:
General hygienic fluid transfer including milk, beer, syrups, shampoo, sauces.
Certifications:
3-A, EHEDG, FDA, CE
Downloads:
Flow Rates: Up to 77 m³/h
Pressure: Up to 8 bar
Temperature: Up to 130 °C
Material Compatibility: 316L SS; FDA and 3-A compliant elastomers; optional FEP, FKM, EPDM.
SRU
Features:
Tri-lobe or bi-lobe rotors, modular gearbox, front-loading mechanical seals, low-shear, heavy-duty construction.
Benefits
Reliable, high-efficiency transfer of delicate or viscous fluids with full CIP/SIP capability; robust and hygienic.
Applications:
Dairy, beverage, soup, pharma, cosmetics, viscous products or products with solids.
Certifications:
3-A, EHEDG, FDA, ATEX
Downloads:
Flow Rates: Up to 106 m³/h
Pressure: Up to 20 bar
Temperature: Up to 200 °C (depending on seal/rotor type)
Material Compatibility: 316L stainless steel, FDA/USP elastomers, alloy rotors available.
SX
Features:
Multi-lobe rotors, all-stainless housing, electropolished finish, low-pulsation, aseptic-grade with drainable design.
Benefits
Ultra-hygienic, gentle pumping with validated cleanability; perfect for biotech and high-purity food/pharma needs.
Applications:
Biotech, vaccines, dairy, infant formula, cosmetics, sterile food and pharma fluids.
Certifications:
3-A, EHEDG Type EL Aseptic, FDA, ATEX
Downloads:
Flow Rates: Up to 115 m³/h
Pressure: Up to 15 bar
Temperature: Up to 150 °C
Material Compatibility: 316L stainless steel; USP Class VI elastomers; optional SiC seals, pharma-grade finishes.
JOHNSON SPX PUMPS
TOPLOBE
Features:
Tri-lobe rotor, 316L SS casing, front-loading mechanical seal, optional heating/cooling jackets, 12 port sizes.
Benefits
Reliable hygienic transfer; handles viscous fluids; front-access maintenance; optional integrated safety valve.
Applications:
Dairy, beverage, sauce, syrup, personal care, clean utilities; broad hygienic duties.
Certifications:
CE, ATEX available, FDA
Downloads:
Flow Rates: Up to 125 m³/h
Pressure: Up to 22 bar
Temperature: Up to 70 °C (product); higher for CIP/SIP
Material Compatibility: 316L stainless steel; EPDM/FKM elastomers; duplex steel rotors available.
TOPWING
Features:
Bi-wing rotor, heavy-duty frame, front-loaded seals, modular ports, optional safety valve or flushing system.
Benefits
Ultra-hygienic, low-pulsation flow; EHEDG compliant; clean-in-place design; robust and easy to maintain.
Applications:
Aseptic food and pharma, baby food, cultured dairy, body care fluids, sterile filtration feed.
Certifications:
3-A, EHEDG, FDA, ATEX
Downloads:
Flow Rates: Up to 156 m³/h
Pressure: Up to 15 bar
Temperature: Up to 140 °C
Material Compatibility: 316L SS casing; duplex or elastomer rotors; FDA/USP VI seals.
TOPLOBE PLUS
Features:
Tri-lobe design with 4-way mount, front-loaded seals, hygienic self-draining casing, bi-directional flow.
Benefits
Energy-efficient; gentle on product; supports full CIP/SIP; modular design for ease of maintenance.
Applications:
Creams, syrups, clean solutions, cosmetic bases, dairy, sauces, soaps.
Certifications:
FDA, CE, ATEX-ready
Downloads:
Flow Rates: Up to 82 m³/h
Pressure: Up to 10 bar
Temperature: Up to 100 °C (product); SIP to 140 °C
Material Compatibility: 316L SS casing and rotors; EPDM/FKM; compliant with FDA and USP VI.
JABSCO PUMPS
HYLINE SERIES
Features:
Tri-lobe or bi-wing rotors, modular stainless steel pump head, EasyFit front-loaded seals, interchangeable port orientations.
Benefits
High volumetric efficiency, CIP/SIP cleanable, gentle handling of shear-sensitive or particle-laden fluids, easy maintenance.
Applications:
Food, beverage, dairy, cosmetics, sauces, creams, gels, syrups, and pastes.
Certifications:
EHEDG, 3-A, FDA, USDA, ATEX
Downloads:
Flow Rates: Up to 126 m³/h
Pressure: Up to 20 bar
Temperature: -30 °C to 140 °C
Material Compatibility: 316L SS pump head; EPDM, PTFE, Viton seals; Ra ≤ 0.8 µm; FDA & USP VI elastomers.
ULTIMA SERIES
Features:
Ultra-hygienic, fully drainable pump with front-removable seals, electropolished 316L SS, and steam barrier options.
Benefits
Maximum cleanability for aseptic processes; low pulsation; designed for steam sterilisation; excellent for sterile fluids.
Applications:
Biotech, pharma, aseptic food processing, high-purity and sterile product transfer.
Certifications:
3-A, EHEDG Class I, FDA, USP VI
Downloads:
Flow Rates: Up to 41 m³/h
Pressure: Up to 15 bar
Temperature: -20 °C to 135 °C (SIP capable)
Material Compatibility: 316L SS electropolished to Ra ≤ 0.5 µm; FDA & USP Class VI elastomers.
INOXPA PUMPS
SLR SERIES
Features:
Tri-lobe stainless steel rotors, sanitary design with no product retention, mechanical seals outside the product zone, front-loading configuration.
Benefits
Reliable, low-shear pumping of high and low-viscosity fluids; easy disassembly; fully CIP/SIP cleanable.
Applications:
Dairy, cosmetics, beverages, pharmaceuticals, tomato paste, creams, food sauces.
Certifications:
EHEDG, 3-A (optional), FDA
Downloads:
Flow Rates: Up to 160 m³/h
Pressure: Up to 16 bar
Temperature: -10 °C to 120 °C (SIP to 140 °C)
Material Compatibility: 316L stainless steel; EPDM/FPM/PTFE elastomers; polished surfaces Ra ≤ 0.8 µm; optional Ra ≤ 0.5 µm.
HLR SERIES
Features:
Ultra-hygienic tri-lobe pump with front-loaded seals, electropolished 316L SS, self-draining housing, and multiple seal options.
Benefits
Designed for aseptic and EHEDG-compliant processing; handles viscous or shear-sensitive fluids with minimal pulsation.
Applications:
Sterile dairy, fermented foods, baby food, biotech, culture media, CIP skids, syrups.
Certifications:
EHEDG, 3-A (optional), FDA, USP VI
Downloads:
Flow Rates: Up to 115 m³/h
Pressure: Up to 12 bar
Temperature: -10 °C to 120 °C (SIP to 140 °C)
Material Compatibility: 316L SS; FDA/USP Class VI elastomers; EPDM/FPM; surface Ra ≤ 0.8 µm (optional ≤ 0.5 µm).
WAUKESHA PUMPS
UNIVERSAL 1
Features:
Circumferential piston rotor design, external timing gears, front-loaded O-ring seals, 316L SS body with 88 alloy rotors.
Benefits
Handles viscous and shear-sensitive fluids with minimal pulsation; easy maintenance; good suction lift; CIP capable.
Applications:
Dairy, sauces, creams, meat slurry, yeast, bakery batter, cosmetics, and personal care products.
Certifications:
3-A Sanitary, USDA Dairy Accepted, FDA
Downloads:
Flow Rates: Up to 102 m³/h
Pressure: Up to 14 bar
Temperature: -40 °C to 149 °C
Material Compatibility: 316L SS body; non-galling alloy rotors; FDA-compliant elastomers; optional stainless rotors.
UNIVERSAL 2
Features:
Heavy-duty rotary design with SS bearing housing, tapered roller bearings, multiple seal options, and close-coupled Tru-Fit motor mount.
Benefits
High-pressure handling with robust design; improved CIP access; long life under high viscosity or abrasive conditions.
Applications:
Caramel, fruit fillings, shampoo, syrups, paint, inks, thick slurries in food and cosmetic production.
Certifications:
3-A Sanitary, FDA, USDA, ATEX (optional)
Downloads:
Flow Rates: Up to 70 m³/h
Pressure: Up to 34.5 bar
Temperature: -40 °C to 149 °C
Material Compatibility: 316L SS housing; alloy or SS rotors; FDA/USP elastomers; USDA H1 lubricant.
UNIVERSAL 3
Features:
Next-gen rotary pump with front-loading seals, 316L SS frame, large shafts, self-draining casing, EHEDG-grade cleanability.
Benefits
Easy-to-maintain sanitary pump; meets 3-A without disassembly; superior CIP/SIP performance; built for uptime.
Applications:
Processed cheese, baby food, yogurt, syrups, cosmetic creams, pharma slurries, CIP fluid transfer.
Certifications:
3-A Certified, FDA, EHEDG-level design, ATEX (available)
Downloads:
Flow Rates: Up to 102 m³/h
Pressure: Up to 34.5 bar
Temperature: -40 °C to 149 °C (SIP compatible)
Material Compatibility: 316L SS body; “88” alloy or SS rotors; FDA/USP Class VI elastomers; USDA H1 lubrication.
APV PUMPS
DW SERIES
Features:
Bi-lobe and tri-lobe rotors, front-loading seals, stainless steel housing, vertical/horizontal porting, self-draining design.
Benefits
Versatile hygienic pump with low shear and high volumetric efficiency; easy seal replacement; EHEDG and 3-A certified.
Applications:
Milk, cream, yoghurt, CIP return, fruit prep, syrups, baby food, cosmetics.
Certifications:
EHEDG, 3-A, FDA
Downloads:
Flow Rates: Up to 133 m³/h
Pressure: Up to 15 bar
Temperature: Up to 150 °C
Material Compatibility: 316L stainless steel; FDA/USP elastomers; carbon or SiC seals; polished Ra ≤ 0.8 µm.
NEED OUR EXPERT ADVICE?
WE CAN HELP
As the rotary lobe pump Specialists, we understand it can be difficult to identify the pump you require, but that’s where we come in! If you require technical or specification advice, spares or support, please don’t hesitate to get in touch with us. Our team are happy to help!
